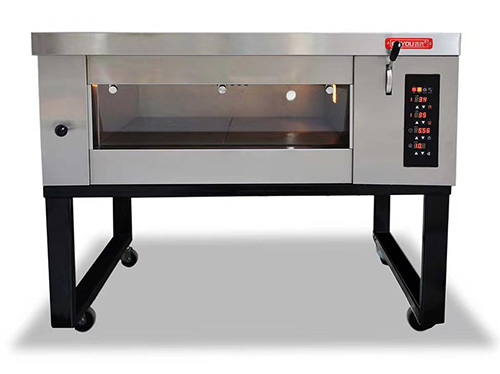

Product Name：European style Electric Deck Oven

Model：LEO-201

Capacity：1-deck-2-tray

Volt：380V 3N

Power（kw）：4.4W

Frequency（Hz）：50/60HZ

Product Size（mm）：1330*1065*1085mm

Intemal size（mm）：850*750*210mm

Tray Qty：2PCS

Features：

1；Accurate Temperature control system，Independent top fire and bottom fire of working method to meet your needs

2;The aluminum coated plate is used for chamber material（Thickness exacity 1.5mm）with fuliy enclosed welding which can reduce heat lossgreatly

3；Heating tubes of high quality are uniformed distributed in chamber of oven to make uniformed furnace temperrature

4；The perspective glass of high temperrature resistancetance is safe and relible
5；Steam can be selected ；Stone can be selected

Installation and precautions:

1. The installation, debugging, moving and auxiliary installation of the oven must be carried out by professionals. Non professionals are not allowed to operate without permission.
2. The oven can't be stored and used in the open air, can't be used in the place with special humidity or water leakage, and can't be used in the high temperature environment.
The oven should not be used in the place with inflammable and explosive materials or corrosive gas, otherwise it may lead to fire. Do not use in places where sand or dust is easy to accumulate.
3. The technical parameter plate is on the right side of the oven (see the picture). Before installation, please check that the nature of the power supply used must be consistent with the power parameters marked on the oven product parameter plate.
4. There is an exhaust port on the back of the oven. No inflammable, explosive or fire prone articles are allowed near the exhaust port, otherwise the fire will be caused by the high temperature of the exhaust port.
If necessary, users can install their own exhaust pipe. The exhaust pipe must be made of nonflammable heat insulation and flame retardant material, otherwise it will cause fire due to high temperature.
The length of the exhaust pipe should not exceed 5 meters, and the route of the exhaust pipe is not allowed to have flammable and explosive materials.
5. The oven belongs to the appliance of "permanently connected to fixed wiring". Do not use the plug or connect the power cord into the socket, otherwise it may cause damage to the oven and other hazards.
This machine is supplied with a power cord when it is delivered from the factory. Please connect the power cord to the leakage protection switch of the power supply and connect the ground wire.
The Yellow / Green two-color line in the power line is the grounding conductor, which must be reliably connected to the protective grounding conductor conforming to the national electricity safety regulations.
6. The oven needs reliable grounding.
It is strictly forbidden to connect the grounding wire to the water pipe, gas pipe, heating pipe and other pipes, otherwise it may cause safety accidents.
