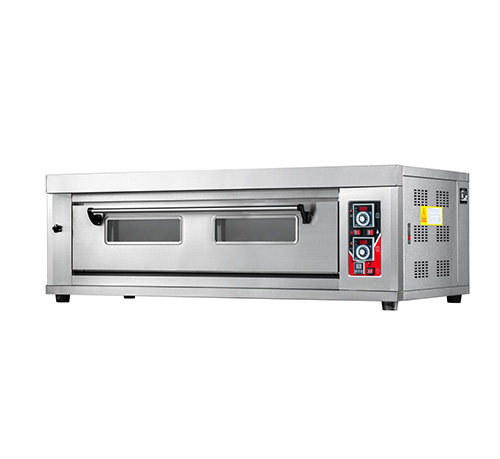

1-deck-4-tray Gas Oven

Product Name：Gas Oven

Model：HTR-14Q

Capacity：1-deck-4-tray

Volt：220V

Power（kw）：100W

Frequency（Hz）：50/60

Product Size（mm）：1750*1090*590mm

Features：

1；Accurate Temperature control system，Independent top fire and bottom fire of working method to meet your needs

2；With special gas burner to make excellent combustion

3；The aluminm coated plate is used for chamber material （Thickness exactly 1.5mm）with fully enclosed welding which can reduce heat loss greatly

4；With downward door to make operate easliy and safely

5；Steam can be selected Stone can be selected

6；The perspective glass of high temperrature resistancetance is safe and relible

产品名称 Product Name	型号 Model	规格 Capacity	能源类型 Energy Type	电压 Volt	功率 Power	频率Hz Frequency	产品尺寸mm Product Size
燃气烘炉 Gas Oven	HTR-20Q	1层2盘1-deck-2tray	燃气 Gas	220v	100W	50/60Hz	1330910645
燃气烘炉 Gas Oven	HTR40Q	2层2盘2-deck-2tray	燃气 Gas	220v	200W	50/60Hz	13309101330
燃气烘炉 Gas Oven	HTR-60Q	3层6盘3-deck-6tray	燃气 Gas	220v	300W	50/60Hz	13309101805
燃气烘炉 Gas Oven	HTR-30Q	1层3盘1-deck-3tray	燃气 Gas	220v	100W	50/60Hz	17509101330
燃气烘炉 Gas Oven	HTR-S-60Q	2层6盘2-deck-6tray	燃气 Gas	220v	200W	50/60Hz	17509101330
燃气烘炉 Gas Oven	HTR-90Q	3层9盘2-deck-2tray	燃气 Gas	220v	300W	50/60Hz	17509101805
燃气烘炉 Gas Oven	HTR-14Q	1层4盘1-deck-4tray	燃气 Gas	220v	100W	50/60Hz	1750910645
燃气烘炉 Gas Oven	HTR-28Q	2层8盘2-deck-2tray	燃气 Gas	220v	200W	50/60Hz	17509101330
燃气烘炉 Gas Oven	HTR-120Q	3层12盘3-deck-12tray	燃气 Gas	220v	300W	50/60Hz	17509101805
燃气烘炉 Gas Oven	HTR-105Q	1层5盘1-deck-5tray	燃气 Gas	220v	100W	50/60Hz	21501090590
燃气烘炉 Gas Oven	HTR-210Q	2层10盘2-deck-10tray	燃气 Gas	220v	200W	50/60Hz	215010901340
燃气烘炉 Gas Oven	HTR-315Q	3层15盘3-deck-15tray	燃气 Gas	220v	300W	50/60Hz	215010901650
燃气烘炉 Gas Oven	HTR-106Q	1层6盘1-deck-12tray	燃气 Gas	220v	100W	50/60Hz	23501090590
燃气烘炉 Gas Oven	HTR-212Q	2层12盘2-deck-12tray	燃气 Gas	220v	200W	50/60Hz	235010901340
燃气烘炉 Gas Oven	HTR-318Q	3层18盘3-deck-18tray	燃气 Gas	220v	300W	50/60Hz	235010901650

Installation and precautions:

1. The installation, debugging, moving and auxiliary installation of the oven must be carried out by professionals. Non professionals are not allowed to operate without permission.
2. The oven can't be stored and used in the open air, can't be used in the place with special humidity or water leakage, and can't be used in the high temperature environment.
The oven should not be used in the place with inflammable and explosive materials or corrosive gas, otherwise it may lead to fire. Do not use in places where sand or dust is easy to accumulate.
3. The technical parameter plate is on the right side of the oven (see the picture). Before installation, please check that the nature of the power supply used must be consistent with the power parameters marked on the oven product parameter plate.
4. There is an exhaust port on the back of the oven. No inflammable, explosive or fire prone articles are allowed near the exhaust port, otherwise the fire will be caused by the high temperature of the exhaust port.
If necessary, users can install their own exhaust pipe. The exhaust pipe must be made of nonflammable heat insulation and flame retardant material, otherwise it will cause fire due to high temperature.
The length of the exhaust pipe should not exceed 5 meters, and the route of the exhaust pipe is not allowed to have flammable and explosive materials.
5. The oven belongs to the appliance of "permanently connected to fixed wiring". Do not use the plug or connect the power cord into the socket, otherwise it may cause damage to the oven and other hazards.
This machine is supplied with a power cord when it is delivered from the factory. Please connect the power cord to the leakage protection switch of the power supply and connect the ground wire.
The Yellow / Green two-color line in the power line is the grounding conductor, which must be reliably connected to the protective grounding conductor conforming to the national electricity safety regulations.
6. The oven needs reliable grounding.
It is strictly forbidden to connect the grounding wire to the water pipe, gas pipe, heating pipe and other pipes, otherwise it may cause safety accidents.
